tensorflow.AUTOTUNE

케시를 사용해 속도 향상

import tensorflow as tf
AUTOTUNE = tf.data.experimental.AUTOTUNE

import IPython.display as display
from PIL import Image
import numpy as np
import matplotlib.pyplot as plt
import os
tf.__version__

'2.2.0'

https://python.flowdas.com/library/pathlib.html

pathlib --- 객체 지향 파일 시스템 경로 — 파이썬 설명서 주석판

import pathlib
data_dir=tf.keras.utils.get_file(origin='https://storage.googleapis.com/download.tensorflow.org/example_images/flower_photos.tgz',
fname='flower_photos', untar=True)
data_dir = pathlib.Path(data_dir)

Downloading data from https://storage.googleapis.com/download.tensorflow.org/example_images/flower_photos.tgz
228818944/228813984 [==============================] - 2s 0us/step



image_count = len(list(data_dir.glob('*/*.jpg')))
image_count

3670



CLASS_NAMES = np.array([item.name for item in data_dir.glob('*') if item.name != "LICENSE.txt"])
CLASS_NAMES

array(['sunflowers', 'roses', 'tulips', 'daisy', 'dandelion'],
      dtype='<U10')





roses = list(data_dir.glob('roses/*'))
for image_path in roses[:3]:
  display.display(Image.open(str(image_path)))

image_generator = tf.keras.preprocessing.image.ImageDataGenerator(rescale=1./255)

BATCH_SIZE = 32
IMG_HEIGHT = 224
IMG_WIDTH = 224
STEPS_PER_EPOCH = np.ceil(image_count/BATCH_SIZE)
train_data_gen = image_generator.flow_from_directory(directory=str(data_dir),
batch_size=BATCH_SIZE,
shuffle=True,
target_size=(IMG_HEIGHT, IMG_WIDTH),
classes = list(CLASS_NAMES))

Found 3670 images belonging to 5 classes.



def show_batch(image_batch, label_batch):
  plt.figure(figsize=(10,10))
  for n in range(25):
    ax = plt.subplot(5,5,n+1)
    plt.imshow(image_batch[n])
    plt.title(CLASS_NAMES[label_batch[n]==1][0].title())
    plt.axis('off')

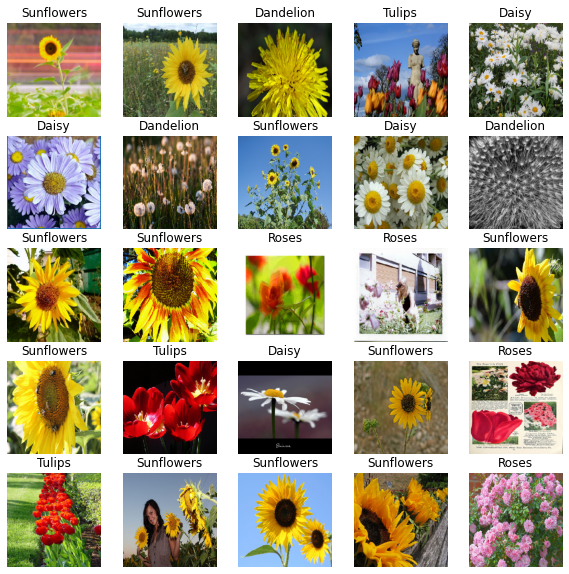

image_batch, label_batch = next(train_data_gen)
show_batch(image_batch, label_batch)



list_ds = tf.data.Dataset.list_files(str(data_dir/'*/*'))
for f in list_ds.take(5):
  print(f.numpy())

b'/root/.keras/datasets/flower_photos/roses/5892908233_6756199a43.jpg'
b'/root/.keras/datasets/flower_photos/roses/12045735155_42547ce4e9_n.jpg'
b'/root/.keras/datasets/flower_photos/sunflowers/175638423_058c07afb9.jpg'
b'/root/.keras/datasets/flower_photos/daisy/4258408909_b7cc92741c_m.jpg'
b'/root/.keras/datasets/flower_photos/tulips/8717900362_2aa508e9e5.jpg'



def get_label(file_path):
# convert the path to a list of path components
  parts = tf.strings.split(file_path, os.path.sep)
# The second to last is the class-directory
  return parts[-2] == CLASS_NAMES

def decode_img(img):
  # convert the compressed string to a 3D uint8 tensor
  img = tf.image.decode_jpeg(img, channels=3)
  # Use `convert_image_dtype` to convert to floats in the [0,1] range.
  img = tf.image.convert_image_dtype(img, tf.float32)
  # resize the image to the desired size.
  return tf.image.resize(img, [IMG_HEIGHT, IMG_WIDTH])

def process_path(file_path):
  label = get_label(file_path)
  # load the raw data from the file as a string
  img = tf.io.read_file(file_path)
  img = decode_img(img)
  return img, label

# Set `num_parallel_calls` so multiple images are loaded/processed in parallel.
labeled_ds = list_ds.map(process_path, num_parallel_calls=AUTOTUNE)
for image, label in labeled_ds.take(1):
  print("Image shape: ", image.numpy().shape)
  print("Label: ", label.numpy())

Image shape:  (224, 224, 3)
Label:  [ True False False False False]



def prepare_for_training(ds, cache=True, shuffle_buffer_size=1000):
  # This is a small dataset, only load it once, and keep it in memory.
  # use `.cache(filename)` to cache preprocessing work for datasets that don't
  # fit in memory.
  if cache:
    if isinstance(cache, str):
      ds = ds.cache(cache)
  else:
    ds = ds.cache()
  ds = ds.shuffle(buffer_size=shuffle_buffer_size)
  # Repeat forever
  ds = ds.repeat()
  ds = ds.batch(BATCH_SIZE)
  # `prefetch` lets the dataset fetch batches in the background while the model
  # is training.
  ds = ds.prefetch(buffer_size=AUTOTUNE)
  return ds

train_ds = prepare_for_training(labeled_ds)

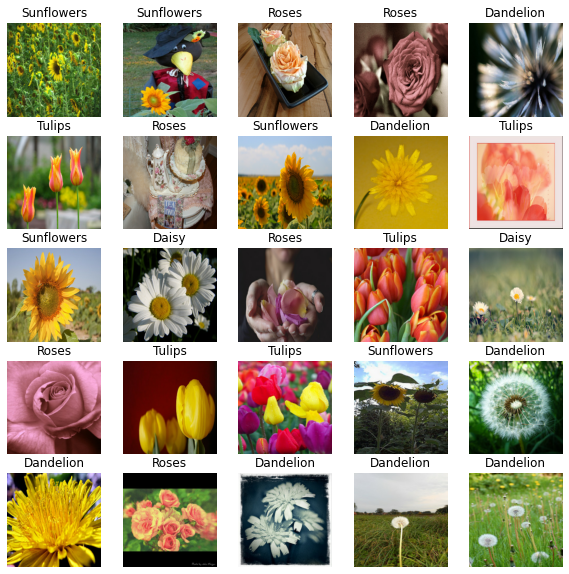

image_batch, label_batch = next(iter(train_ds))

show_batch(image_batch.numpy(), label_batch.numpy())

import time
default_timeit_steps = 1000
def timeit(ds, steps=default_timeit_steps):
  start = time.time()
  it = iter(ds)
  for i in range(steps):
    batch = next(it)
    if i%10 == 0:
      print('.',end='')
  print()
  end = time.time()
  duration = end-start
  print("{} batches: {} s".format(steps, duration))
  print("{:0.5f} Images/s".format(BATCH_SIZE*steps/duration))





---

# `keras.preprocessing`
timeit(train_data_gen)

....................................................................................................
1000 batches: 93.27838158607483 s
343.05913 Images/s



# `tf.data`
timeit(train_ds)

....................................................................................................
1000 batches: 65.31680083274841 s
489.91989 Images/s



uncached_ds = prepare_for_training(labeled_ds, cache=False)
timeit(uncached_ds)

....................................................................................................
1000 batches: 13.038451194763184 s
2454.27923 Images/s



filecache_ds = prepare_for_training(labeled_ds, cache="./flowers.tfcache")
timeit(filecache_ds)

....................................................................................................
1000 batches: 39.23072385787964 s
815.68722 Images/s
