finance

import FinanceDataReader as fdr
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import matplotlib.dates as mdates
import matplotlib.ticker as mticker
from matplotlib import style
from matplotlib import font_manager, rc
from matplotlib import gridspec
import csv
from mpl_finance import candlestick_ohlc
from datetime import date



font_name=font_manager.FontProperties(fname="C:/Windows/Fonts/HMFMPYUN.TTF").get_name()
rc('font',family=font_name)

fig=plt.figure()
ax1=plt.subplot2grid((2,2),(0,0))
ax2=plt.subplot2grid((2,2),(0,1))
ax3=plt.subplot2grid((2,2),(1,0),colspan=2)

def drawBirths():
    global ax3

    years=range(1880,2012)
    pieces=[]
    # data 경로 설정
    datafile='data/births.txt'
    with open(datafile,'rt') as f:
        data=csv.reader(f,delimiter=',')
        for d in data:
            pieces.append(d)

    x=[int(year) for year,female,male in pieces]
    y1=[int(female) for year,female,male in pieces]
    y2=[int(male) for year,female,male in pieces]

    ax3.plot(x,y1,'-',color='r',label='여아')
    ax3.plot(x,y2,'-',color='b',label='남아')

    ax3.grid(True)
    ax3.legend(loc=4)


def viewStockTrend_1():
    global  ax1
    df = fdr.DataReader("005930", '2019')
    ref_price =43000
    date=df.index
    opn=np.array(df['Open'].astype(int))
    high=np.array(df['High'].astype(int))
    low=np.array(df['Low'].astype(int))
    closep=np.array(df['Close'].astype(int))
    volume=np.array(df['Volume'].astype(int))
    change=np.array(df['Change'].astype(int))
    ax1.plot([],[],linewidth=5,label='이익',color='r',alpha=0.5)
    ax1.plot([],[],linewidth=5,label='손해',color='b',alpha=0.5)
    ax1.fill_between(date, closep, ref_price, where=(closep > ref_price),
                     facecolor='r', alpha=0.5)
    ax1.fill_between(date, closep, ref_price, where=(closep < ref_price),
                     facecolor='b', alpha=0.5)

    ax1.spines['left'].set_color('c')
    ax1.spines['left'].set_linewidth(5)
    ax1.spines['right'].set_visible(False)
    ax1.spines['top'].set_visible(False)
    ax1.plot_date(date, closep, '-', color='b')
    for label in ax1.xaxis.get_ticklabels():
        label.set_rotation(45)

    ax1.tick_params(axis='x', colors='r')
    ax1.tick_params(axis='y', colors='#225588')

    ax1.grid(True)

def drawStockTrend2():
    global ax2

    ref_price = 43000
    df = fdr.DataReader("005930", '2015')
    arrayData = np.array(df)
    #date = df.index.
    dates = pd.to_datetime(df.index, format="%Y-%m-%d")
    # print(type(date[0]))
    closeps = np.array(df['Close']).astype(int)
    highs = np.array(df['High']).astype(int)
    lows = np.array(df['Low']).astype(int)
    openps = np.array(df['Open']).astype(int)
    volumes = np.array(df['Volume']).astype(int)

    # ax3에 주가 캔들을 그립니다.
    ohlc = []

    for i in range(len(dates)):
        d = mdates.date2num(dates[i])
        stock_data = d, openps[i], highs[i], lows[i], closeps[i], volumes[i]
        ohlc.append(stock_data)

    candlestick_ohlc(ax2, ohlc, width=0.5, colorup='r', colordown='b')

    # candlestick_ohlc(ax2, zip(mdates.date2num(dates), df['Open'], df['High'], df['Low'], df['Close']),
    #                  width=0.5, colorup="r", colordown="b")

    ax2.xaxis.set_major_formatter(mdates.DateFormatter('%Y-%m-%d'))
    ax2.xaxis.set_major_locator(mticker.MaxNLocator(10))

    for label in ax2.xaxis.get_ticklabels():
        label.set_rotation(45)

    ax2.grid(True)

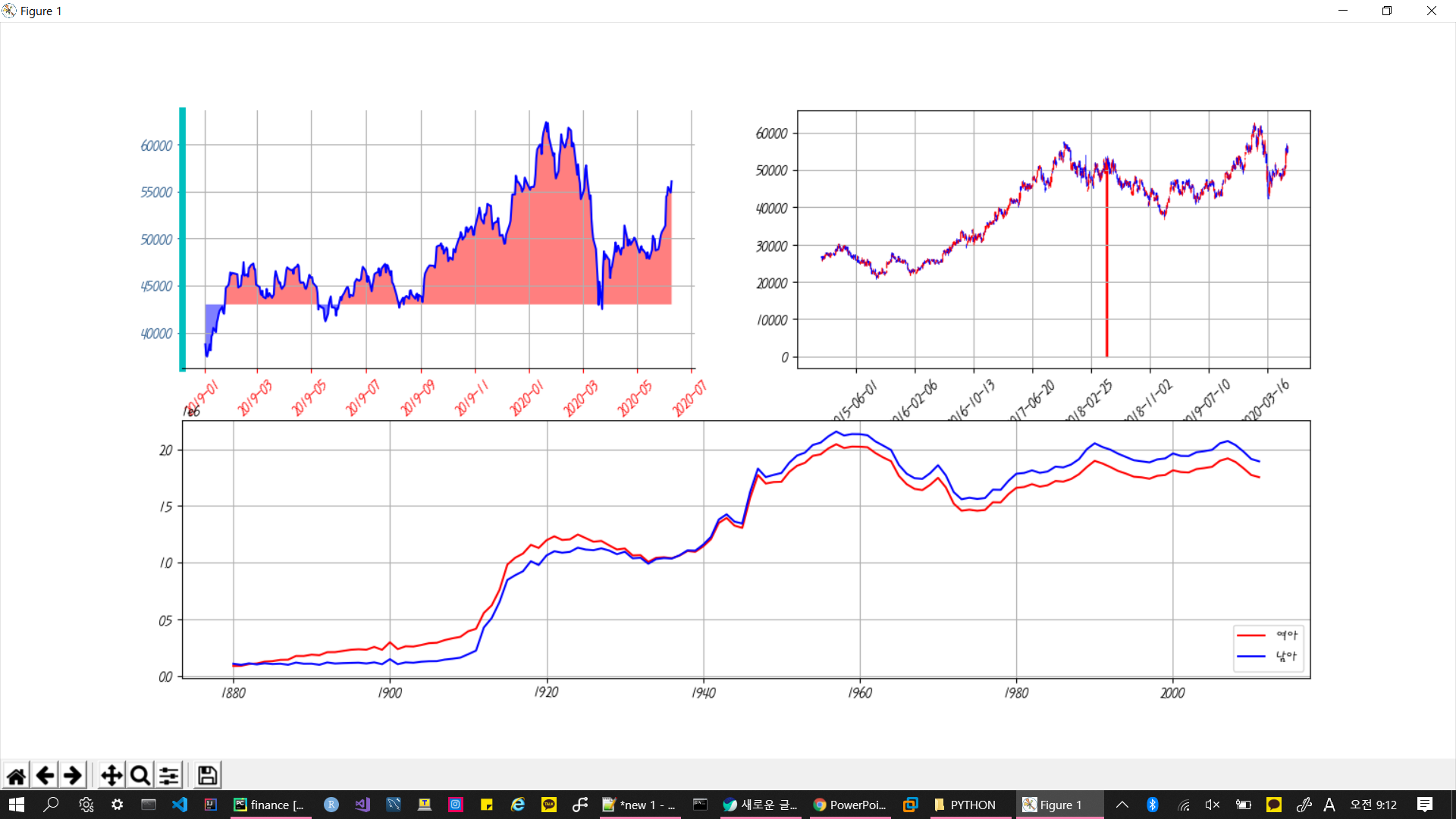

drawBirths()
viewStockTrend_1()
drawStockTrend2()
plt.show()
